CPCBIV+ COMPLIANT

INDIA’S LARGEST FLEET OF GENSETS   |   82.5 - 160 kVA

Enquire Now

A RICH HERITAGE OF OVER A CENTURY OF ENGINEERING EXCELLENCE.

Kirloskar Genset

Kirloskar power generating sets prioritize user experience, delivering exceptional features and benefits. Streamlined installation and enhanced dependability to expedited service, reduced maintenance costs, and optimized performance.

Kirloskar Powergen sets itself apart with groundbreaking engineering that establishes new industry benchmarks.


LIMITLESS POTENTIAL, SUSTAINABLE PRACTICES

Our state-of-the-art manufacturing facility embodies our commitment to sustainable practices. We partner with nature to power the facility itself, transforming waste into valuable resources. This focus on sustainability inspires both our workforce and surrounding communities. It's here, where cutting-edge technology meets exceptional skills, that we engineer solutions to empower limitless possibilities.

82.5 -160 kVA TECHNICAL SPECIFICATIONS

Prime Rating at rated rpm (as per ISO8528) kVA 82.5 100 125 160
kW 66 80 100 128
Genset Model KG4-82.5WS1 KG4-100WS1 KG4-125WS1 KG4-160WS11
Frequency Hz 50
Power Factor lagging 0.8
Voltage V 415 (3Ø)
Governing class (As per ISO 8528 Part-V) G3
Noise level dBA <75
Fuel tank capacity (Standard DG set) Ltrs 200 230 230 400
✪ Weight of genset with canopy (approx..)^ Dry Kg 1800 2170 2200 2980
Wet (w/o fuel) Kg 1860 2230 2260 3050
Overall dimensions of genset ^ Length mm 3200 3200 3200 4200
Width mm 1350 1350 1350 1450
Height mm 1595 1796 1796 1900
Electrical Battery Starting Voltage Volts-DC 12
ENGINE
Engine Model 4R1190ETA 4G1 4K1080ETA 4G1 4K1080ETA 4G1 6K1080ETA 4G1
Rated output (Prime Continuous rating as per ISO 8528-1) kW 77.2 114.7 114.7 147.1
HP 105 156 156 200
No. of cylinder Number 4 4 4 6
Cubic capacity Ltrs 4.76 4.32 4.32 6.48
Bore x Stroke mm 110 x 125 105 x 125 105 x 125 105 x 125
Rated Speed RPM 1500
Aspiration NA/TC/TA TA
Lube Oil change period hrs. 500
Lube oil Sump Capacity (max) Ltrs 10 14 14 25
Coolant Capacity (Engine + Radiator) Ltrs 15.1 17.7 17.7 28.9
Adblue / EF capacity Ltrs 25
ALTERNATOR
Insulation Class Class H
Alternator Efficiency (at 100% load) 0.8 pf** % 91.1 89.6 91.9 92.4
Max Voltage Dip at Full Load 0.8 pf Lag <20%
Max Time to build up rated voltage at Rated RPM < 2 sec, provided engine reach the rated speed

^ Tolerances Apply

✪ These Weight are for handling & transportation only

**Efficiency of Alternator as per standards IEC60034-1

Notes

AdBlue used should follow ISO 22241.

Above specifications are subject to change without prior notice due to continuous technical development.

For intermediate ratings, kindly contact nearest Kirloskar office.

For Site Conditions other than standard operating conditions consult Kirloskar Oil Engines for available prime power.

7 Easy steps for a happy Genset Ownership

Genset kVA Features 82.5-160 kVA Features

Prime rating and Stand-by rating

‘Prime power’ is designed for Unlimited hours, as compared to 'Emergency stand-by' designed for 200 hours in a year. Prime rated Gensets also permit 10% temporary overloading. Users need to carefully select the Genset rating to meet their requirement. Kirloskar offers Prime power as a standard offer. Contact Kirloskar for stand-by ratings.

Best Fluid Efficiency (Fuel & DEF)

Kirloskar Gensets offer a unique combination of CPCB norm compliance and enhanced fuel efficiency. Across the range, Kirloskar Gensets offer substantial savings in fuel cost.

O2E Series (Optimal Operating Efficiency):

Genset ratings are selected based on the present load and future expansion. Fuel efficiency of most Gensets is optimized at the full rating of the Genset.

In practice, Gensets rarely get loaded to full capacity. Power demand variations across day & night, weekdays & weekends, summer & winter lead to an average 50-70% loading on Gensets.

Considering this practical situation, Kirloskar has extended fuel efficiency optimization from 100%, right up to 50% of rated load.

In line with fuel efficiency Kirloskar Genset ensures the better DEF efficiency and accordingly optimized the DEF tank size.

Combination of best-in-class fuel efficiency & O2E provides a double advantage.

Genset Monitoring at Your Finger Tips

Kirloskar gensets are enabled with Kirloskar remote monitoring system which shares Real Time Genset information and location services. It can be accessed via mobile device or desktop. Kirloskar remote monitoring system also highlights any parameter which needs special attention. These critical indication alerts are sent to user mobile via text message. It also alerts nearest services dealer in case of any emergency break-down.

No replacement to displacement

Engine capacity (cc) plays a vital role in Genset performance. Higher engine capacity leads to a robust and stable Genset performance.

Higher engine capacity also enables the Genset to respond quickly & positively to sudden load additions.

Common Rail Direct Injection System (CRDi)

Common rail diesel injection technology, popularly known as CRDi, provides a significant upgrade over traditional mechanical fuel injection systems. CRDi provides precise fuel control, multiple injections, enhanced performance, lower noise and reduced emissions. High pressure common rail system employed on Kirloskar CPCB IV+ Gensets maximizes fuel atomization, delivering a smooth and smoke free performance. Diesel filters with ‘A’ class filtration are used for CRDi Engines which enhances the filtration efficiency. Common rail fuel injection system will provide a new level of performance, efficiency, and reliability.

State of the art Genset Controller

Kirloskar Genset put the command in your hands. Micro-processor based Genset controllers display a host of genset parameters and put all controls at your fingertips.

Monitoring Features:

Diagnostic Features:

Optional Features:

Peace-of-mind Ownership

Kirloskar Gensets have always been preferred for their robust design and reliability over long usage life. Kirloskar range carries the confidence of well-established and proven engine platforms. For compliance to revised CPCB norms, Kirloskar has carefully selected those technologies which not only retain, but enhance Gensets durability and on-site serviceability.

Thus, Kirloskar Gensets offer you many years of trouble-free performance; backed by the assurance of prompt support. Peace-of-mind driven by product reliability and low cost of ownership.

On Board Diagnostics

Superior uptime. Genset comes with advanced diagnostic capabilities, this coupled with Kirloskar remote monitoring system provides real time monitoring of performance, emission and service critical parameters this helps for early diagnosis to fix the issues before system breakdown

Compact footprint

Kirloskar CPCB compliant Gensets are having compact footprint which results in space saving. CPCB compliant technology is upgraded by maintaining the compact footprint of Genset.

Alternator Features

Kirloskar Alternator is compact in design, rugged and best in class efficiency. Advanced Digital AVR improves the Voltage regulation and Response time.

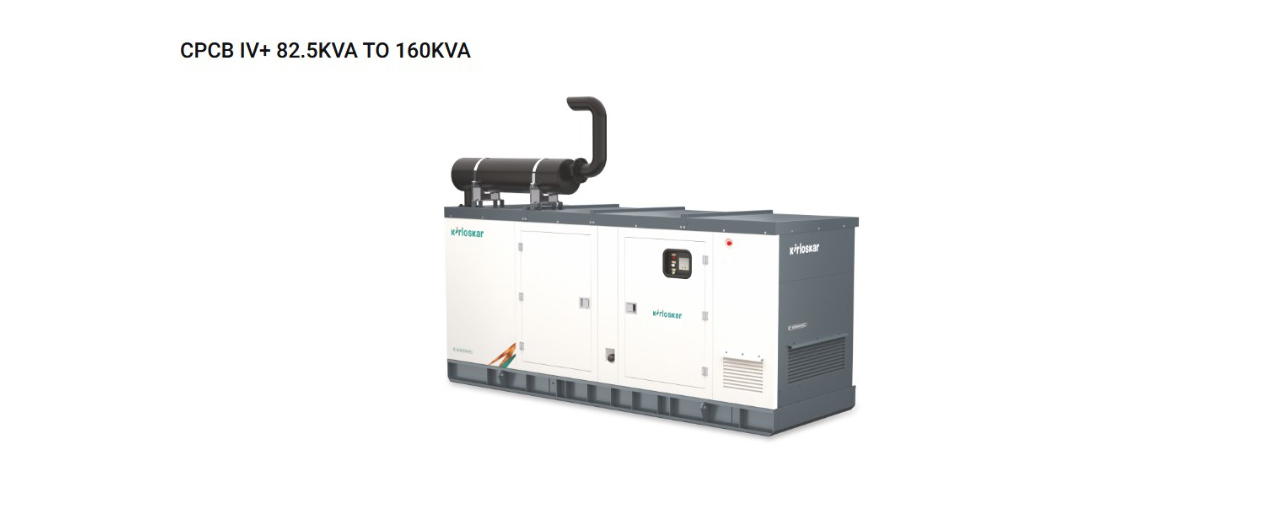

Glimpses CPCB IV+ Genset (82.5-160 kVA)

  • Exhaust Gas Treatment System
    • DOC & SCR system sets off the reaction to meet the latest CPCB norms
    • Reduction in NOx & HC
    • Reduction in PM
  • Engine
    • Efficient CRDi System
    • 02E Series: Low emission, high efficiency engine
    • Compact, Robust and Rugged Design
    • 500 hours lube-oil change period
  • Controller
    • Microprocessor based
    • Graphical LCD display
    • Best in class monitoring and diagnostic capability
    • Integrable with AMF, Communication compatible
  • DEF Tank
    • DEF/Aqueous urea to sets off the chemical reaction with Exhaust gas
    • Tank size is optimized in accordance to DEF consumption
  • Supply Module & DCU
    • Control & monitor the DEF
  • O2E - Optimal operating efficiency
  • DEF - Diesel exhaust fluid
  • DCU - Dosing control unit
  • DOC - Diesel oxidation catalyst
  • SCR - Selective catalytic reduction
